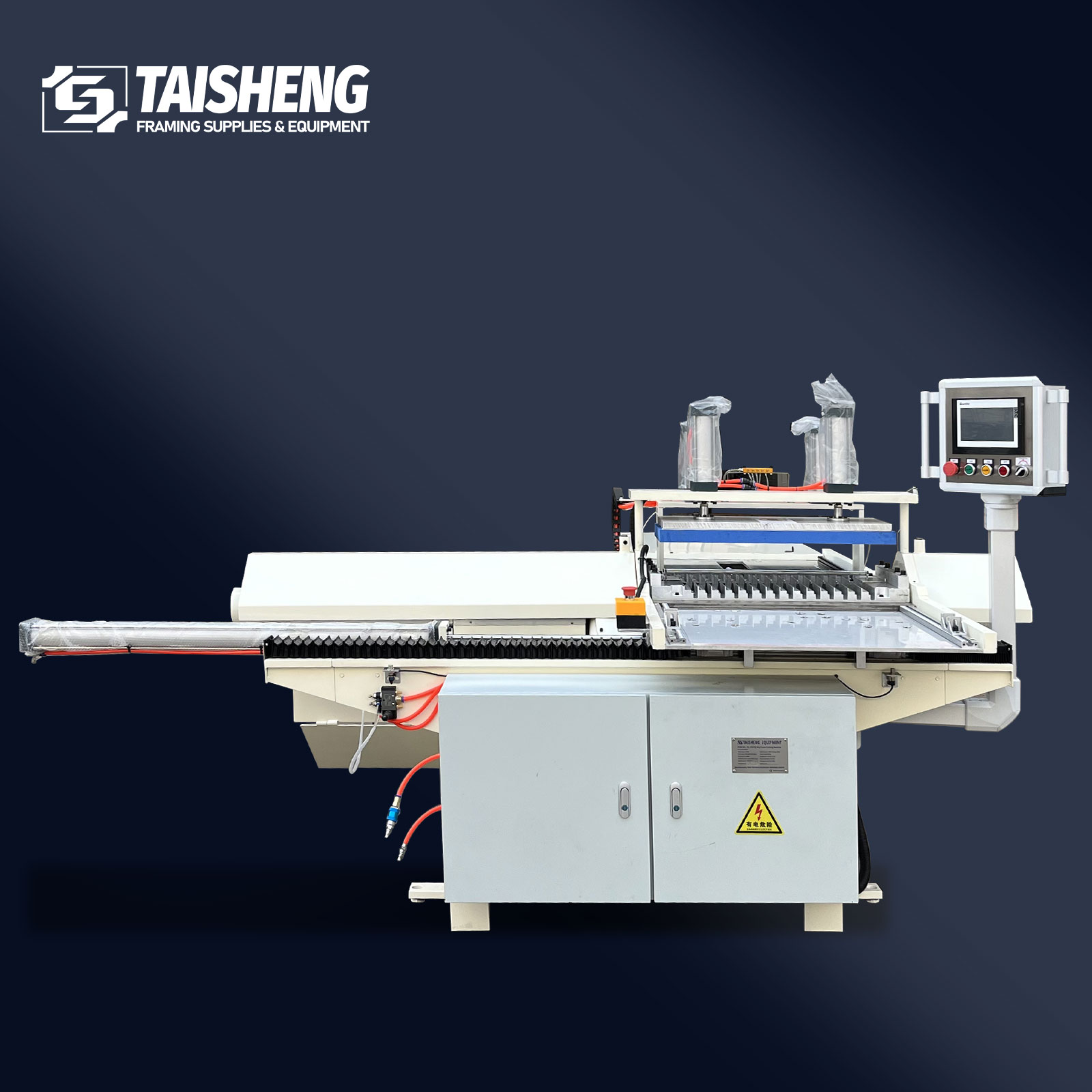

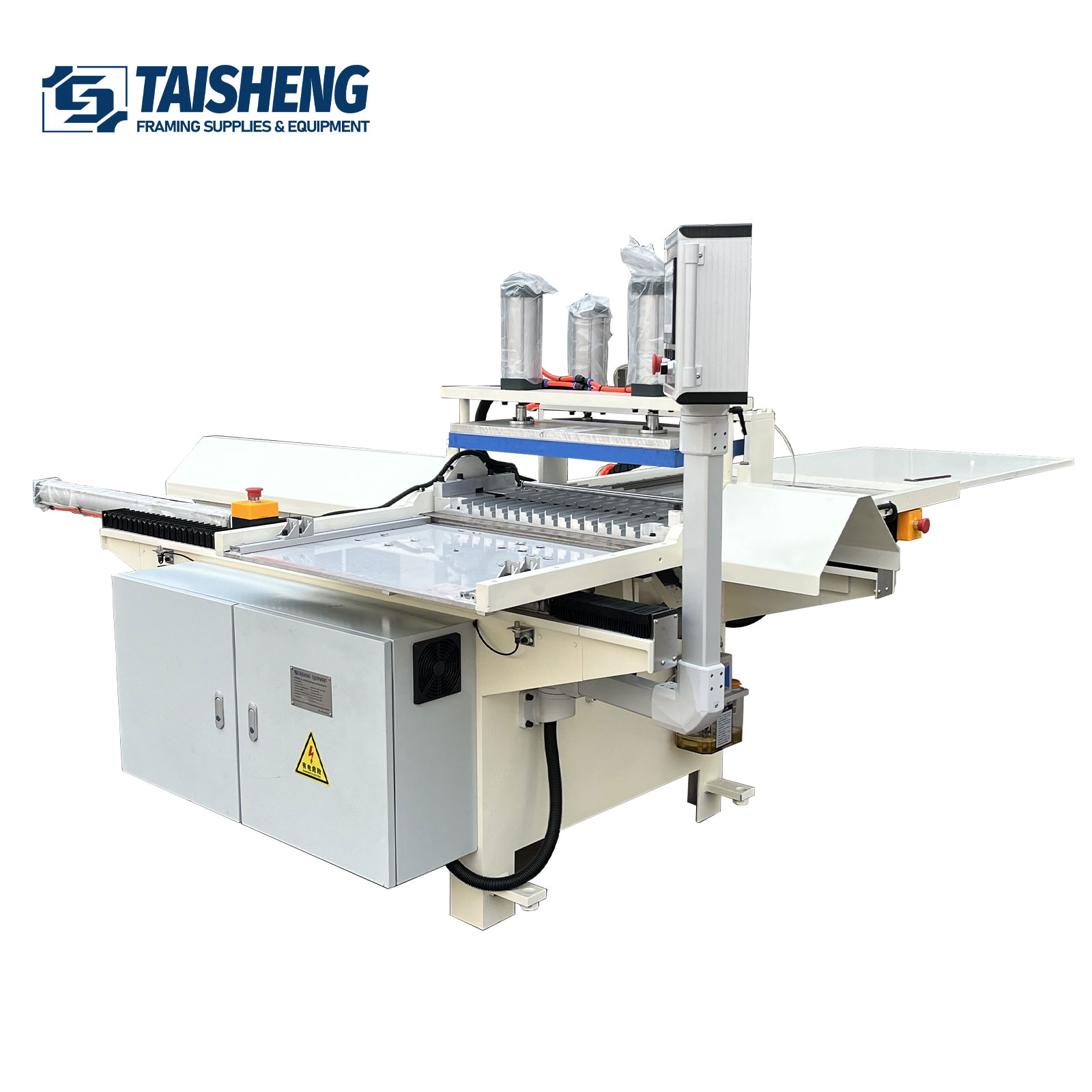

TS-J39 PQJ Automatic frame cutting machine
02) 3-Phase
03) Saw Blades Motor: 2.2KWX2
04) Conveyor Motor: 180W
05) Feeding Motor: 1KW
06) Working Pressure: 0.6-0.8Mpa
07) Max Frame Mould Width: 53CM
08) Max Cutting Height: 46MM
09) Max Cutting Length: 150CM
10) Min Cutting Length: 12CM
Product Details
Cutting canvas bar or other wood,MDF rectangle bar, it can design no waste type . Saw blade will rise one by one .No angle waste.
Saw blade can be more durable too !
Aluminum Alloy Frame Mouldings Cutting Machine Automatic Double Mitre Saw 45 Framing Works Heavy Large Productions
Power | 7.18KW |
Vote | 380V,50hz,3 phases / 480V,60hz, 3 phases |
Air-op Mpa | 6-8Mpa |
Max width on cutting mould | 53cm : if frame moulding width 2cm, cutting mould need 2mm space between 2 frame profile, it means one moulding need 2.2cm space . Cut output / time = 53cm÷2.2 = 24pcs frame moulding ine one time. |
Cuting heigth | 48mm |
Cutting Length | 100mm - 1500mm |
Speed of saw | 2000r/min & 4000R/min |
Advantage 1 | Cutting many pcs in one time , |
Advantage 2 |
Cutting 4 different length in one pcs mouldings |
Weight | 850KG |
Machine size | L 260 x W185 x H 135cm |
Machine type |
1. Wood ,MDF or PS moulding cutting type 2. Wood or MDF canvas bar cutting type- no waste, saw blade will reise up 3.Aluminum cutting type, it has water cold system |
Attention tips | To ensure cutting size 100% correct ,it will need cutting mould for each different size or design moulding. One size need one cutting mould. TS-J39 PQJ auto cutting machine will come with 1 set cutting mould free . Extra need pay it . |
